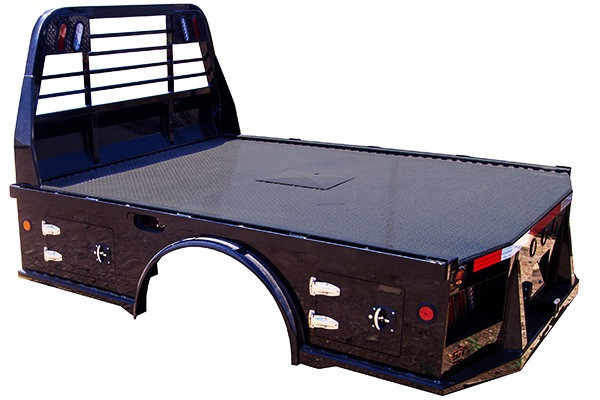

GR Trailers DTFB Steel Skirted Pickup Flatbed | Multiple Bed Sizes

GR Trailers DTFB Steel Skirted Pickup Flatbed | Multiple Bed Sizes
$5,499.00 - $5,799.00
Brand

GR Trailers

SKU GRTrailers-DTFB
View full product page

Choose your options

Choose your options with Configure to add this item to your cart.

Availability Call to Confirm Availability, Get a Custom Quote or Schedule An Installation.

GR Trailers | DTFB Skirted Steel Truck Bed | Lockable Toolboxes & Premium Powdercoat Built for the demands of the modern job site, the GR Trailers DTFB Steel Truck Bed delivers an exceptional balance of strength, storage, and utility. Featuring an integrated skirt design with two lockable toolboxes, a heavy-duty 12-gauge steel tread plate deck, and a robust 4" steel channel main frame, the DT…

Read the full description

GR Trailers | DTFB Skirted Steel Truck Bed | Lockable Toolboxes & Premium Powdercoat

Built for the demands of the modern job site, the GR Trailers DTFB Steel Truck Bed delivers an exceptional balance of strength, storage, and utility. Featuring an integrated skirt design with two lockable toolboxes, a heavy-duty 12-gauge steel tread plate deck, and a robust 4" steel channel main frame, the DTFB is ready to work. It comes fully equipped with a gooseneck ball mounting box, a 2" rear receiver, and a premium TGIC Polyester Black Powdercoat finish to withstand the harsh conditions of the Magic Valley.

Available Flatbed Sizes & Vehicle Footprints

The DTFB is manufactured in a wide range of dimensions to perfectly fit your truck's rear-wheel configuration. Common footprints include:

Single Rear Wheel (SRW)

Short Bed (80″ W x 7′ L): Fits 42" Main Frame (Boxes Behind Fender)
Long Bed (80″ W x 8.5′ L): Fits 42" Main Frame
Cab & Chassis (80″ W x 9′ L): Fits 42" Main Frame

Dual Rear Wheel (DRW)

Standard DRW (96x102″ W x 9′ L): Fits 34″ Main Frame
Cab & Chassis (96x102″ W x 9.5′ L): Fits 34″ Main Frame
Cab & Chassis (96x102″ W x 10′ L): Fits 34″ Main Frame
Extended Chassis (96x102″ W x 11′ L): Fits 34″ Main Frame
Extended Chassis (96x102″ W x 12′ L): Fits 34″ Main Frame

GR Trailers Size & Fitment Guide

Below is the master sizing chart to match the DTFB Steel Truck Bed to your specific chassis specifications:

Configuration Dimensions (W x L) Standard Frame Width
Single Rear Wheel - Short Bed 80″ x 7′ 42″
Single Rear Wheel - Long Bed 80″ x 8.5′ 42″
Single Rear Wheel - Cab Chassis 80″ x 9′ 42″
Dual Rear Wheel - Cab Chassis 96x102″ x 9′ 34″
Dual Rear Wheel - Cab Chassis 96x102″ x 9.5′ 34″
Dual Rear Wheel - Cab Chassis 96x102″ x 10′ 34″
Dual Rear Wheel - Cab Chassis (Ext) 96x102″ x 11′ 34″
Dual Rear Wheel - Cab Chassis (Ext) 96x102″ x 12′ 34″

The Structural Backbone: Built to Work

The DTFB relies on a massive foundation utilizing a 4” Steel Channel main frame supported by 3” Steel Channel crossmembers. The top deck utilizes a rugged 12-Gauge Steel Tread Plate to handle heavy payloads without buckling. To guarantee long-lasting aesthetics and protection against rust, every GR Trailer bed is fully coated in a Premium TGIC Polyester Black Powdercoat finish.

Comprehensive Standard Features

  • Integrated Storage: Maximize your utility with two standard lockable toolboxes built directly into the skirt of the bed.
  • Elite Towing Setup: Pull heavy trailers effortlessly using the Gooseneck ball mounting box with cover and 1/2″ safety chain rods. Safely tow bumper-pull loads via the full rear bumper utilizing a 4″ steel channel with a 2″ receiver tube and 1/2″ safety chain rods.
  • Formed Headache Rack: Built using 2″ x 3″ tubing with steel pipe to transport large items while protecting the cab and passengers.
  • Cargo Securing: Secure your loads using the 11-Gauge side rails featuring an integrated rub rail.
  • Advanced LED Lighting: Maintain visibility with D.O.T. approved LED stop, tail, turn, clearance, and back-up lights integrated into the rear of the bed and the headache rack.
  • Electrical Integration: Comes factory-equipped with two 7-Way RV Female plugs (one in the gooseneck box and one at the rear bumper).

Available Factory Options

Personalize your GR Trailers DTFB to meet your exact job site requirements:

  • 4-Toolbox Configuration: Upgrade from two lockable toolboxes to four for maximum equipment storage.
  • Gooseneck Trough: Opt for a gooseneck ball trough instead of the standard enclosed box.
  • Frame Customization: Adjust rail measurements to fit different chassis widths from the standard.
  • Extended Tie-Downs: Add a rub rail on each side (standardly included on all skirted beds).

⚠️ Professional In-House Installation

Modern trucks feature highly complex safety, camera, and powertrain systems that directly impact upfit requirements. We offer full in-house installation services Monday - Friday in our dedicated service bays.

Whether you require the relocation of factory backup cameras, integration of parking proximity sensors, or professional wiring for the dual 7-way plugs, our technicians ensure your vehicle's systems remain fully operational. Contact our sales staff for an exact quote based on your specific truck make and model year.

Visit Riverside Trailers in Jerome, ID Today

Equip your truck with a heavy-duty GR flatbed. We stock multiple sizes and configurations to get your truck back on the road and working hard. Stop by our lot at 322 W Yakima Ave in Jerome, ID, serving the Twin Falls, Burley, and Mountain Home communities. Call our flatbed and upfitting experts today at 208-324-0400 to verify inventory, confirm your truck's CTA measurements, and build the perfect GR Trailers DTFB bed for your fleet!

*Installations are only offered in our facilities. Flatbeds and installation labor are subject to Idaho sales tax. Weights and specifications are approximate and subject to change depending on options.
