Norstar | CB Crane Body | 1" Steel Crane Plate, Manual Outriggers, & Integrated Toolboxes

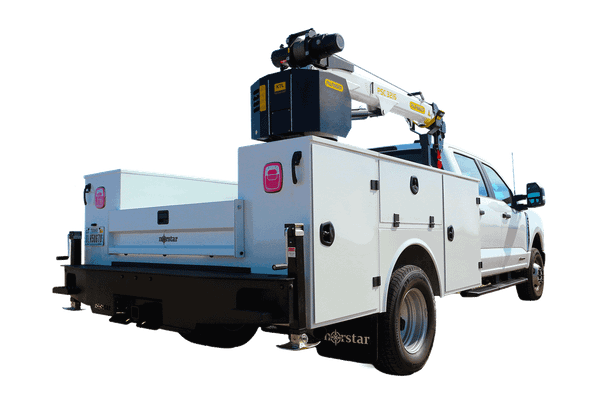

The Norstar CB Crane Body takes everything you love about the UB Service Body and adds a heavy-duty crane mount to it. This New Model for 2026 is the ultimate vocational platform for heavy equipment mechanics, municipalities, and field service crews. Featuring all the fan-favorite storage features—including compression latches, a 3-point lock system, and D-rings—it also introduces a newly designed frame-mounted bumper with rear jack stands to stabilize your crane when in use.
Available Crane Body Sizes & Vehicle Footprints
Service bodies must be carefully sized based on single vs. dual rear wheel chassis capacity to ensure perfect wheel-well flare clearance and weight distribution. Current and upcoming footprints include:
108" Length (DRW): Extended length models built as a direct fit for commercial 60" Cab-to-Axle (CA) Dual Rear Wheel frames.
132" Length (DRW): Maximum length models built as a direct fit for commercial 84x84" Cab-to-Axle (CA) Dual Rear Wheel frames.
98" Length (SRW): Engineered specifically for Single Rear Wheel (SRW) 56" Cab-to-Axle standard commercial trucks.
108" Length (SRW): Engineered specifically for Single Rear Wheel (SRW) 60" Cab-to-Axle setups. (Approximate weight: 2210 lbs).
Norstar Truck Bed Size & Fitment Guide
Below is the master sizing chart to help match commercial beds to your specific chassis runner width and CTA:
| Truck Make & Year | Configuration | Length x Width | Cab To Axle (CTA) | Frame Runners |
|---|---|---|---|---|
| Ford (1998 - 2017) & (2018+) | Single Wheel Short Bed | 84x84" x 84x84" | 40" | 38" |
| Ford (1998 - 2017) & (2018+) | Single Wheel Long Bed | 8'6" x 84x84" | 56" | 38" |
| Ford (1998 - 2017) & (2018+) | Dually | 8'6" x 97" | 56" | 38" |
View Full Truck Fitment Guide (Expand)
| Ford (1998 - 2017) & (2018+) | Cab & Chassis | 9'4" x 94"/97" | 60" | 34" |
| Ford (1998 - 2017) & (2018+) | Cab & Chassis (Extended) | 11'4" x 94"/97" | 84x84" | 34" |
| GMC / Chevrolet (2001 - Present) | Single Wheel Short Bed | 84x84" x 84x84" | 42" | 42" |
| GMC / Chevrolet (2001 - Present) | Single Wheel Long Bed | 8'6" x 84x84" | 56" | 42" |
| GMC / Chevrolet (2001 - Present) | Dually | 8'6" x 97" | 56" | 42" |
| GMC / Chevrolet (2001 - Present) | Cab & Chassis | 9'4" x 94"/97" | 60" | 34" |
| GMC / Chevrolet (2001 - Present) | Cab & Chassis (Extended) | 11'4" x 94"/97" | 84x84" | 34" |
| Dodge / RAM (2003 - Present) | Single Wheel Short Bed | 84x84" x 84x84" | 38" | 42" |
| Dodge / RAM (2003 - Present) | Single Wheel Long Bed | 8'6" x 84x84" | 58" | 42" |
| Dodge / RAM (2003 - Present) | Megacab (Single Wheel) | 84x84" x 84x84" | 38" | 42" |
| Dodge / RAM (2003 - Present) | Megacab (Dually) | 84x84" x 97" | 38" | 42" |
| Dodge / RAM (2003 - Present) | Dually | 8'6" x 97" | 58" | 42" |
| Dodge / RAM (2003 - Present) | Cab & Chassis | 9'4" x 94"/97" | 60" | 34" |
| Dodge / RAM (2003 - Present) | Cab & Chassis (Extended) | 11'4" x 94"/97" | 84x84" | 34" |
The Structural Backbone: Built for Heavy Lifting
The Norstar CB model is re-engineered from the ground up to support significant dynamic loads. The bed features a reinforced floor assembly and a massive 1" Steel Crane Mount Plate designed to safely handle 3K or 4K cranes. To prevent chassis roll and suspension compression during heavy lifts, the CB includes a newly designed frame-mounted bumper equipped with manual outriggers for support (rear jack stands).
Comprehensive Standard Features
The CB arrives ready for extreme service work, loaded with heavy-duty construction elements and secure storage.
- Crane Integration: 1" Steel Crane Mount Plate built directly into the reinforced floor assembly, perfectly suited for 3K or 4K cranes.
- Stabilization: Frame-mounted rear bumper featuring manual outriggers (jack stands) to completely stabilize the crane when in use. (Work top bumpers available soon).
- Elite Towing Setup: Heavy-duty rear hitch featuring a certified 18,500 LB Bumper Rating.
- Maximum Storage Security: Multiple enclosed service compartments equipped with high-quality compression latches and a secure 3-point lock system. Includes 2 Rear Locking Components.
- Cargo Control: Flush-mounted D-rings embedded in the deck for immediate cargo tie-downs.
Available Options
Customize your Norstar CB Crane Body to suit your exact workload with premium factory options:
- Crane Hardware: Compatible with 3K or 4K Crane setups.
- Security Upgrade: Optional Master Lock system to secure all toolboxes simultaneously.
⚠️ Professional In-House Installation
Modern trucks feature highly complex safety and powertrain systems that directly impact upfit requirements. We offer full in-house installation services Monday - Friday in our dedicated service bays.
Whether you require crane wiring integration, the relocation of factory backup cameras, or clean routing of Dual-Fuel and DEF tank necks, our technicians ensure your vehicle's systems remain fully operational. Contact our sales staff for an exact quote based on your specific truck make and model year.
Visit Riverside Trailers in Jerome, ID Today
Transform your pickup into a heavy-duty commercial lifting asset. Stop by our lot at 322 W Yakima Ave in Jerome, ID, serving the Twin Falls, Burley, and Mountain Home communities. Call our flatbed and upfitting experts today at 208-324-0400 to verify inventory, confirm your truck's CTA measurements, and build the perfect Norstar CB Crane Body for your fleet!
*Installations are only offered in our facilities. Service bodies and installation labor are subject to Idaho sales tax. Weights and specifications are approximate and subject to change depending on options.
Specifications
- Bed Type
- Crane Body
- Main Frame Construction
- 4" Structural Steel C-Channel
- Deck Material
- 1/8" Diamond Plate Steel
- Storage
- Enclosed Service Body Compartments
- Reinforcement
- Crane Mount Reinforcement
- Hitch Ratings
- 30,000 lbs. Gooseneck Capacity, 18,500 lbs. Class V Bumper Pull
Norstar Truck Beds & Flatbeds Factory Warranty
When you invest in a Norstar truck bed, you are backed by one of the most reliable warranties in the commercial industry. The following coverage applies to new Norstar flatbeds:
- 3-Year Structural Limited Warranty: Covers structural defects on parts manufactured by Norstar, including the main frame, subframe, crossmembers, and railings.
- 2-Year Comprehensive Limited Warranty: Covers defects in materials, components, and workmanship.
- 1-Year Paint Finish Warranty: Under the comprehensive warranty, the paint finish is warranted against peeling and cracking.
- Third-Party Components: Any individual components not manufactured directly by Norstar are covered by the warranties provided by their respective original manufacturers.
*To activate this coverage, products must be registered online with the manufacturer within 30 days of the original retail purchase.
